P4 1024*768mm Waterproof IP65 Outdoor LED Display Screen for Advertising and Rental Video Wall
Ürün ayrıntıları:
| Menşe yeri: | Guangdong, Çin |
| Marka adı: | LEDKING or OEM & ODM |
| Model numarası: | RO-P4 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | $495-515 |
|
Detay Bilgi |
|||
| Piksel perdesi: | 4 mm | Piksel yoğunluğu: | 62500 nokta/m2 |
|---|---|---|---|
| Piksel yapılandırması: | 1R1G1B | Maksimum güç tüketimi: | 32W |
| Panel ağırlığı: | 0.3kg | Kabine boyutu: | 1024mm*768mm*90mm |
| Kabine çözünürlüğü: | 256 nokta * 192 nokta | Panel miktarı: | 24 adet |
| Hub bağlantısı: | HUB75-E | Kabine malzemesi: | Kalıplı alüminyum dolap |
| Ekran güç kaynağı: | AC110V/220V - 5V60A | Maksimum güç kapasitesi: | 1550 W/m2 |
| Frekans yenileme: | 1920-3840HZ/S | Parlaklık: | 5500-6000 CD/M2 |
| IP koruma indeksi: | IP65 | ||
| Vurgulamak: | P4 LED Display Screen,1024*768mm LED Video Wall,Waterproof IP65 Outdoor LED Screen |
||
Ürün Açıklaması

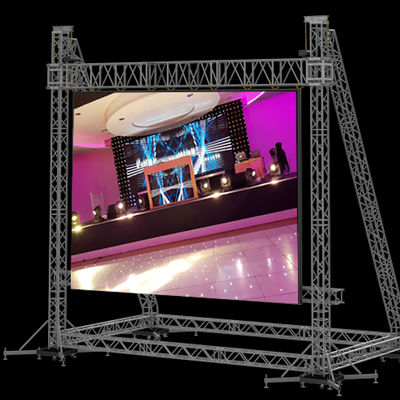

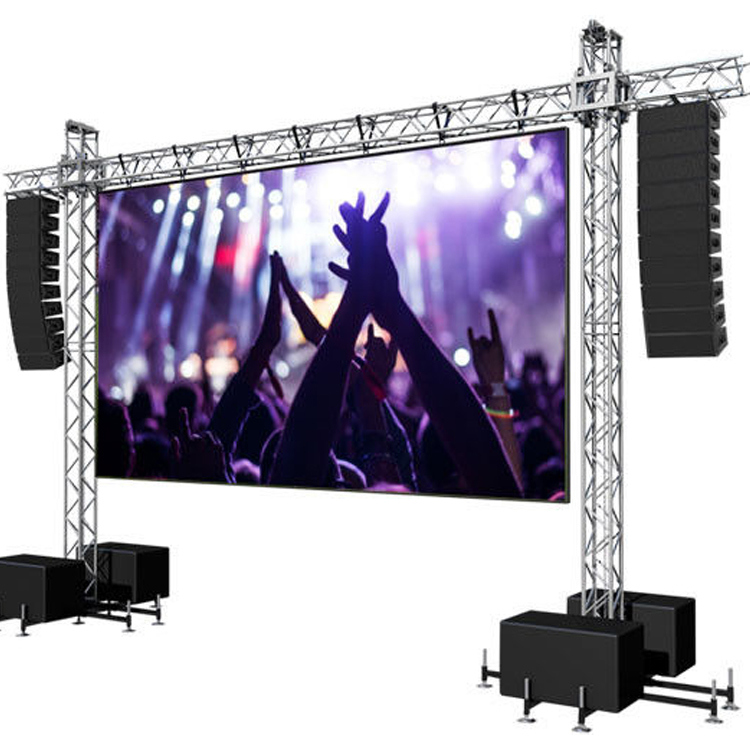

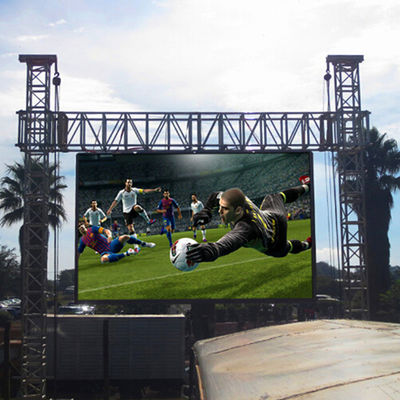

Outdoor P4 1024×768mm Aluminum Cabinet Rental LED Screen
High-Resolution Advertising Display for Outdoor Applications
Technical Specifications
| Item | Outdoor P3 | Outdoor P3.91 | Outdoor P4 |
|---|---|---|---|
| Module Specifications | |||
| Panel Dimension | 192mm(W) × 192mm(H) | 250mm(W) × 250mm(H) | 256mm(W) × 128mm(H) |
| Pixel pitch | 3mm | 3.91mm | 4mm |
| Pixel Density | 111111 dot/m² | 65536 dot/m² | 62500 dot/m² |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Specification | SMD1921 | SMD1921 | SMD1921 |
| Pixel resolution | 64 dot × 64 dot | 64 dot × 64 dot | 64 dot × 32 dot |
| Max power consumption | 30W | 40W | 32W |
| Panel weight | 0.55KG | 0.6KG | 0.3KG |
| Cabinet Specifications | |||
| Cabinet size | 576mm×576mm×90mm, 768×768×90mm | 500×1000mm×90mm, 500×500×90mm | 1024mm×768mm×90mm |
| Cabinet Resolution | 192 dot × 192 dot, 256 dot × 256 dot | 128 dot × 256 dot, 128×128 dot | 256 dot × 192 dot |
| Quantity of panel | 9pcs, 16pcs | 8pcs, 4pcs | 24pcs |
| Hub connecting | HUB75-E | HUB75-E | HUB75-E |
| Cabinet Material | Die-casting aluminum cabinet | Die-casting aluminum cabinet | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service | Front/Back service | Front/Back service |
| Best viewing angle | 140°/120° | 170°/120° | 170°/120° |
| Screen power supply | AC110V/220V - 5V60A | AC110V/220V - 5V60A | AC110V/220V - 5V60A |
| Max power capacity | 1100 W/m² | 1200 W/m² | 1550 W/m² |
| Average power | 550 W/m² | 600 W/m² | 780 W/m² |
| Technical Signal Index | |||
| Driving IC | ICN 2037 / 2153 | ICN 2037 / 2153 | ICN 2037 / 2153 |
| Scan Rate | 1/16S | 1/16S | 1/8S |
| Refresh frequency | 1920-3840 HZ/S | 1920-3840 HZ/S | 1920-3840 HZ/S |
| Display color | 4096×4096×4096 | 4096×4096×4096 | 4096×4096×4096 |
| Brightness | 4500-5000 cd/m² | 4000 cd/m² | 5500-6000 cd/m² |
| Life span | 100000 Hours | 100000 Hours | 100000 Hours |
| Control distance | < 100M | < 100M | < 100M |
| Best viewing distance | 3-30M | 3-30M | 4-40M |
| Operating temperature | -10°C~45°C | -20°C~60°C | -10°C~45°C |
| Operating Humidity | 10-90% | 10-90% | 10-90% |
| IP protective index | IP65 | IP65 | IP65 |
