IP65 Waterproof High-Brightness P6 P8 P10 LED Screen for Shopping Malls and Outdoor Advertising Outdoor 3D Cured LED Screen
Ürün ayrıntıları:
| Menşe yeri: | Guangdong, Çin |
| Marka adı: | LED King |
| Sertifika: | CE FCC ISO |
| Model numarası: | Dış Mekan P6 P8 P10 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | $336 |
| Ambalaj bilgileri: | tahta sandık |
| Teslim süresi: | 15 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | İhtiyaçlarına göre. |
|
Detay Bilgi |
|||
| Kontrol Sistemi: | Nova Yıldızı | Ömür: | 100000 saat |
|---|---|---|---|
| İc: | Chipone ICN2153 | Kabine malzemesi: | Suya Dayanıklı Demir |
| Panel ağırlığı: | 40kg | Güç Kaynağı: | AC110V/220V-5V60A |
| Vurgulamak: | IP65 waterproof LED display,high-brightness P6 LED screen,outdoor 3D cured LED screen |
||
Ürün Açıklaması
IP65 Waterproof High-Brightness P6 P8 P10 LED Screen
Professional outdoor LED display solution for shopping malls, advertising, and commercial applications featuring 3D cured technology.
Technical Specifications
| Module Specifications | |
|---|---|
| Module Size | 320mm(W) * 160mm(H) |
| Pixel Pitch | 6mm / 8mm / 10mm |
| Pixel Density | 27777dot/㎡ (P6) / 15625dot/㎡ (P8) / 10000dot/㎡ (P10) |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD3535 |
| Max Power Consumption | 45W |
| Panel Weight | 0.55KG |

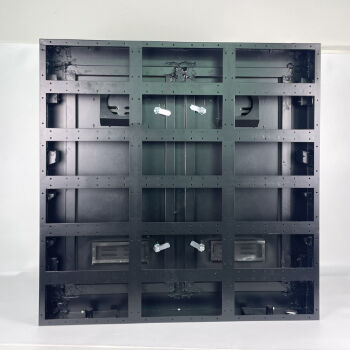

| Cabinet Specifications | |
|---|---|
| Cabinet Size | 960 * 960mm |
| Quantity of Panel | 18pcs |
| Material | Waterproof Iron cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170°/120° |
| Power Supply | AC110V/220V-5V60A |
| Technical Signal Index | |
|---|---|
| Brightness | 4500-5500 cd/㎡ |
| Contrast Ratio | 4000:1 |
| Refresh Frequency | 3840-7680HZ/S |
| Operating Temperature | -20℃ ~ 60℃ |
| IP Protective Index | IP65 |
| Life Span | 100,000 Hours |
Core Features and Advantages
- High brightness: Resistant to strong sunlight with clear visibility under direct light conditions
- Rugged construction: IP65 waterproof and dustproof rating for harsh outdoor environments
- Wide viewing angles: 170°/120° viewing angles ensure excellent visibility from all directions
- Modular design: Quick replacement of faulty modules reduces maintenance time and costs
- Vibrant display: 16-bit color depth delivers rich, dynamic visual content
- Remote management: Network-enabled cluster control for real-time content updates
Application Scenarios
- Commercial street advertising and shopping mall displays
- Hotel/corporate entrance screens and image walls
- Event main screens for concerts and product launches
- Real estate sales office information displays
- Building exterior wall advertising
- Highway/main road billboards
- City square/stadium large screens
- Transportation hub information displays
Certifications
CE
FCC
ISO
Packaging
Installation Case
