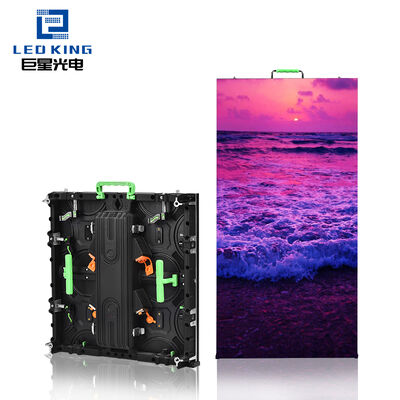

Durable Outdoor P3.91 Rental LED Display with High Contrast and Adjustable Angle System for Stage Productions
Ürün ayrıntıları:
| Menşe yeri: | Guangdong, Çin |
| Marka adı: | LED King |
| Sertifika: | CE FCC ISO |
| Model numarası: | Dış Mekan P3.91 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | $138/pc |
| Ambalaj bilgileri: | Uçuş çantası |
| Teslim süresi: | 15 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | İhtiyaçlarınıza göre |
|
Detay Bilgi |
|||
| Kontrol Sistemi: | NOVA Yıldızı | Dolap malzemesi: | Döküm Alüminyum |
|---|---|---|---|
| Dolap Boyutu: | 500mm*500mm, 500mm*1000mm | Güç Kaynağı: | AC110V/220V-5V40A |
| Ömür: | 100000Saat | Panel Ağırlığı: | 7 kg |
| Vurgulamak: | P3.91 rental LED display,outdoor LED display high contrast,adjustable angle LED stage display |
||
Ürün Açıklaması
Durable Outdoor P3.91 Rental LED Display
High contrast LED display with adjustable angle system designed for professional stage productions and outdoor events.
Technical Specifications
| Module Specifications | ||
|---|---|---|
| Module Size | 250mm(W)*250mm(H) | |
| Pixel Pitch | 3.91mm | |
| Pixel Density | 65536 dot/㎡ | |
| Pixel Configuration | 1R1G1B | |
| LED Specification | SMD1921 | |
| Pixel Resolution | 64dot*64dot | |
| Max Power Consumption | 40W | |
| Panel Weight | 0.6KG | |
| Cabinet Specifications | ||
| Cabinet Size | 500*500mm, 500*1000mm | |
| Cabinet Resolution | 128 dot*128 dot; 128 dot*256 dot | |
| Quantity of Panel | 4pcs; 8pcs | |
| Hub Connecting | HUB75-E | |
| Material | Die-casting aluminum cabinet | |
| Maintenance Method | Front/Back service | |
| Best Viewing Angle | 170/120° | |
| Power Supply | AC110V/220V-5V40A | |
| Max Power Consumption | 1200W/㎡ | |
| Average power consumption | 600W/m² | |
| Technical Signal Index | ||
| Driving IC | ICN2153 | |
| Scan Rate | 1/16S | |
| Refresh Frequency | 3840-7680HZ/S | |
| Display Color | 4096*4096*4096(16bit) | |
| Contrast Ratio | 4000:1 | |
| Brightness | 4500-5000 cd/㎡ | |
| Life Span | 100000Hours | |
| Best Viewing Distance | 3-30M | |
| Operating Temperature | -20℃~60℃ | |
| Operating Humidity | 10-90% | |
| IP Protective Index | IP65 | |
Core Features and Advantages
- High-Brightness Energy Efficiency: Utilizes high-efficiency LEDs and dynamic energy-saving technology for high brightness and low power consumption, ensuring clear visibility day and night
- Superior Image Quality: High refresh rate and high grayscale levels guarantee smooth, flicker-free visuals with no scan lines during recording
- Rugged Durability: Die-cast aluminum housing with IP65/IP67 protection rating. Resistant to wind, rain, dust, and corrosion for harsh outdoor environments
- Convenient Maintenance: Supports front/rear access with modular design. Rapid pinpointing and replacement of defective pixels/sections
- Precise Color: Factory-calibrated pixel-by-pixel to ensure consistent screen-wide color and brightness for flawless display
- Quick Installation: Precise alignment with seamless interlocking cabinets. Supports multiple mounting methods including suspended, stacked, and wall-mounted installations
Application Scenarios
- Commercial Advertising and Brand Promotion: Used on building exteriors and entrances for dynamic brand advertisements and promotional content
- Public Transportation Hub Information Display: Installed at bus stops, airports, and stations for route information, timetables, and announcements
- Cultural and Sports Event Venues: Serving as main screens, side screens, or scoreboards for concerts, festivals, and sporting events
- Landmark and Building Curtain Wall Displays: Embedded into building facades for large-scale architectural media walls and city light shows
- Rental and Temporary Events: Quickly assembled for exhibitions, product launches, weddings, and private parties
- Public Information and Safety Warnings: Broadcasting government announcements, emergency notices, and public service advertisements
- Hotel and Dining/Entertainment Guidance: Displaying welcome messages, meeting directions, and entertainment arrangements
- Digital Sentinels and Image Pillars: Independent digital signage poles in parks, squares, and streets for promotional content
Certifications
CE Certified
FCC Certified
ISO Certified
Packaging and Shipping
Outdoor P3.91 display cabinets are shipped in dedicated flight cases for safe and convenient transport, and support custom logos to enhance brand promotion.

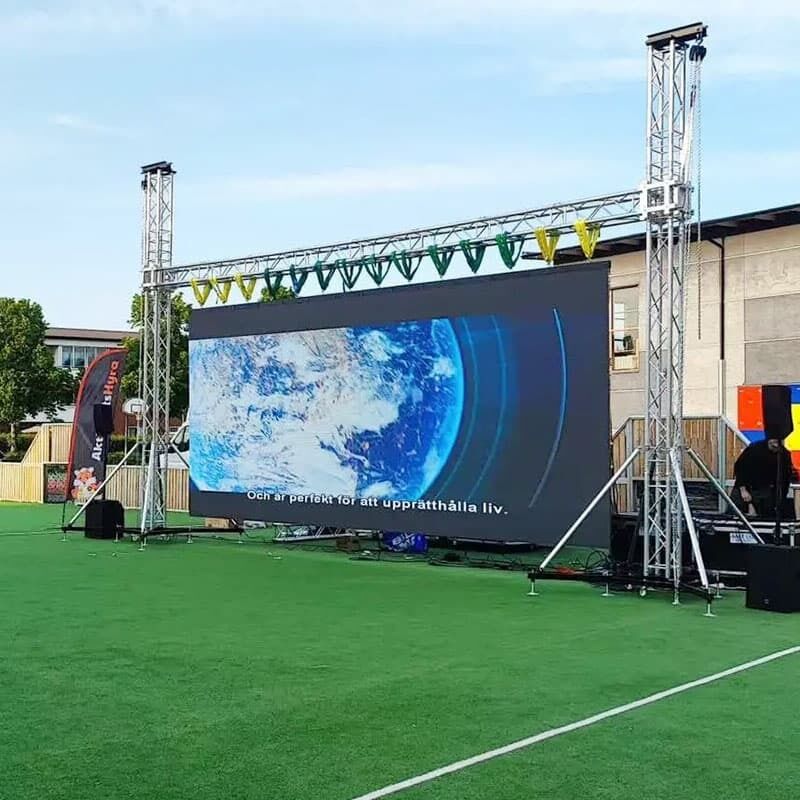

Installation Case Study
Bu ürün hakkında daha fazla bilgi edinmek istiyorum
