P2.976 Outdoor LED Advertising Screen For Building Facade Billboard Displays Front Maintenance Waterproof Iron Cabinet Led Display Screen Led Screen For Stage
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | LEDKING |
| Sertifika: | CE FCC ISO |
| Model numarası: | P3.91 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 10 |
|---|---|
| Fiyat: | $791/PC |
| Ambalaj bilgileri: | kontrplak durumda |
| Teslim süresi: | 15 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | 10 adet 15 gün |
|
Detay Bilgi |
|||
| Panel boyutu: | 250mm ((W) * 250mm ((H) | Piksel Yoğunluğu: | 112910 nokta/m² |
|---|---|---|---|
| LED Spesifikasyon: | SMD1415 | Dolap Boyutu: | 1000mm * 1000mm |
| Malzeme: | Su geçirmez demir dolabı | Sürüş ic: | ICN2153 |
| Vurgulamak: | outdoor LED advertising screen waterproof,front maintenance LED display screen,iron cabinet LED stage screen |
||
Ürün Açıklaması
P2.976 Outdoor LED Advertising Screen
Professional outdoor LED display designed for building facade billboards with front maintenance access and waterproof iron cabinet construction. Ideal for stage applications and high-visibility advertising.
Key Features
- Front maintenance access for easy servicing
- IP65 waterproof rating for outdoor durability
- High brightness (4000-4500cd/m²) for clear visibility
- Wide viewing angle (170°/120°)
- Long lifespan of 100,000 hours
- Suitable for building facades and stage applications
Module Specifications
| Parameter | Value |
|---|---|
| Panel Dimension | 250mm(W) * 250mm(H) |
| Pixel Pitch | 2.976mm |
| Pixel Density | 112,910 dot/m² |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1415 |
| Pixel Resolution | 84dot * 84dot |
| Max Power Consumption | 22.5W |
| Panel Weight | 0.6KG |
Cabinet Specifications
| Parameter | Value |
|---|---|
| Cabinet Size | 1000mm * 1000mm |
| Cabinet Resolution | 336dot * 336dot |
| Quantity of Panels | 16pcs |
| Hub Connecting | HUB75-E |
| Material | Waterproof Iron Cabinet |
| Maintenance Method | Front Service |
| Best Viewing Angle | 170°/120° |
| Screen Power Supply | AC110V/220V - 5V40A |
| Max Power Capacity | 1100 W/m² |
| Average Power Consumption | 450W/m² |
| Panel Weight | 50KG |
Technical Specifications
| Parameter | Value |
|---|---|
| Driving IC | ICN 2153 |
| Scan Rate | 1/21S |
| Refresh Frequency | 3840 HZ/S |
| Brightness | 4000-4500cd/m² |
| Life Span | 100,000 Hours |
| Display Color | 4096 * 4096 * 4096 |
| Contrast Ratio | 4000:1 |
| Control Distance | <100M |
| Best Viewing Distance | 2-30M |
| Operating Temperature | -10°C ~ 45°C |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |

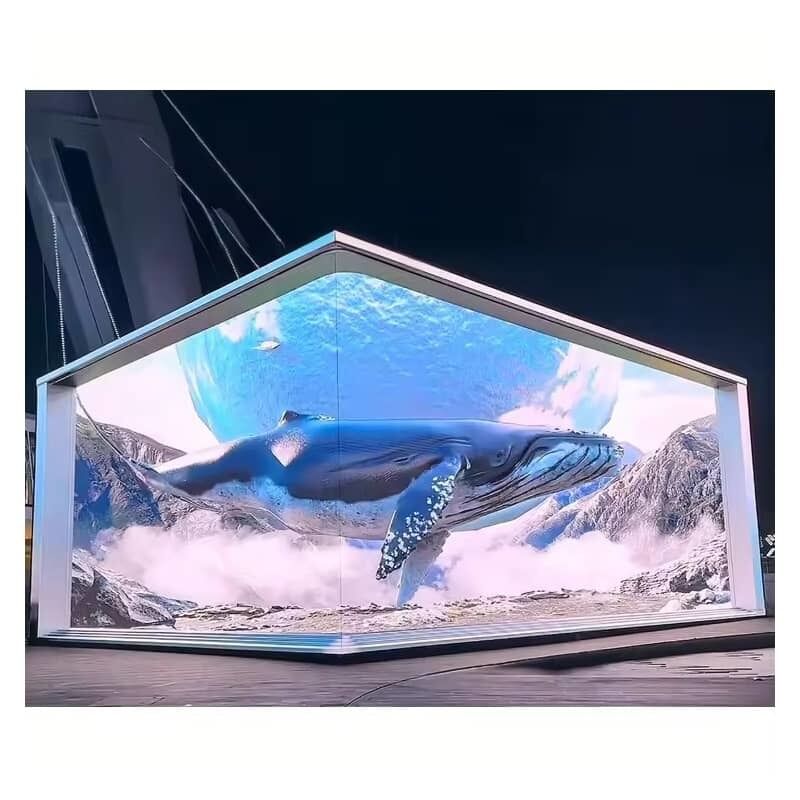

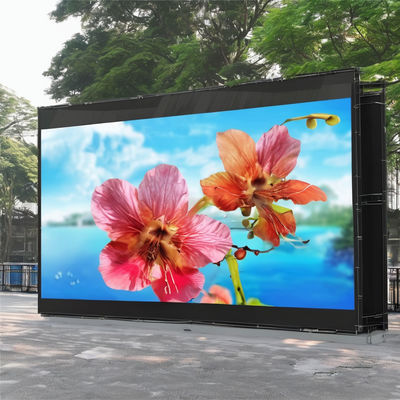

Product Images
